DOT High Pressure Cylinders

DOT High Pressure Cylinders (23)

Norris Cylinders Ready for Shipping

With over 70 years of experience, our quality DOT high pressure, seamless steel cylinders are widely used for shipping, storing, and dispensing industrial gases. Our high pressure cylinders are fabricated from chromium-molybdenum steel and produced in strict compliance with all applicable DOT/TC specifications.

In order to keep our exceptionally high level of quality control, Norris Cylinder closely monitors incoming materials for chemistry, grain size, and freedom from laps, seams, cracks, and inclusions. Our DOT cylinders are manufactured by several methods including plate drawn and hot billet pierce, which produces a seamless cylinder with the bottom integral to the sides.

For other available sizes or customization options, please contact your Norris Cylinder Sales Representative or Customer Service for more information.

Find DOT High Pressure Cylinder Specs

{loadmodule mod_k2_filter,Mobile DOT Filter Imperial}
{loadposition mobile-metric}

{gallery}dot{/gallery}

View items...
Acetylene Cylinders

Acetylene Cylinders (14)

Acetylene Cylinders2

Norris Cylinder manufactures acetylene cylinders with a world renowned asbestos-free, lime-silica porous mass. As the original patent holder of this asbestos-free mass, we have licensed our asbestos free mass to manufacturers in Spain, Australia, Germany, Czechoslovakia, France, Austria, England and the United States.

In design, construction and workmanship, Norris Cylinder acetylene cylinders exceed normal industry requirements. Acetylene cylinders are available in a wide variety of sizes, specifications, and configurations with either acetone or DMF as the solvent.

Forged from steel disks that are cold cupped, drawn and welded to form a cylinder shell, our cylinders are manufactured in accordance with DOT 8/TC 8WM, DOT 8AL/TC 8WAM, or ISO-3807 specifications from the U.S. Department of Transportation, Transport Canada, or the International Organization for Standardization. The cylinders are designed to a settled service pressure of 250 psig at 70°F for a withdrawal rate of 1/7 of cylinder capacity per hour.

For other available sizes or customization options, please contact your Norris Cylinder Sales Representative or Customer Service for more information.

Find Acetylene Cylinder Specs

{loadposition mobile-imperial}
{loadposition mobile-metric}

{gallery}acetylene{/gallery}

View items...
Sunday, 12 August 2018 15:59

S-145

S-145 Acetylene Cylinder

Additional Info

  • Min. Cylinder Volume (in³ ) 1536
  • Min. Cylinder Volume (liter) 25.2
  • Approx. Tare Wgt. w/Valve (w/o Cap) (lb) 74.3
  • Approx. Tare Wgt. w/Valve (w/o Cap) (kg) 33.7
  • OD (in) 8.2
  • OD (mm) 208
  • Height w/o Valve and Cap (in) 34.25
  • Height w/o Valve and Cap (mm) 869.95
  • Height w/Valve and Cap (in) 38.2
  • Height w/Valve and Cap (mm) 1012.2
  • tmin (in) 0.13
  • tmin (mm) 2.8
  • Solvent Acetone (lb) 25.9
  • Solvent Acetone (kg) 11.7
  • Acetylene Capacity (ft³ ) 145
  • Acetylene Capacity (m³ ) 5.9
Published in DOT / TC Specification Acetylene Cylinders
Read more...
Monday, 13 August 2018 16:58

S-100

Additional Info

  • Min. Cylinder Volume (in³ ) 1055
  • Min. Cylinder Volume (liter) 17.3
  • Approx. Tare Wgt. w/Valve (w/o Cap) (lb) 55.6
  • Approx. Tare Wgt. w/Valve (w/o Cap) (kg) 25.2
  • OD (in) 7.2
  • OD (mm) 183
  • Height w/o Valve and Cap (in) 30.75
  • Height w/o Valve and Cap (mm) 781
  • Height w/Valve and Cap (in) 36.6
  • Height w/Valve and Cap (mm) 929.6
  • tmin (in) 0.129
  • tmin (mm) 3.3
  • Solvent Acetone (lb) 12.4
  • Solvent Acetone (kg) 5.6
  • Acetylene Capacity (ft³ ) 100
  • Acetylene Capacity (m³ ) 2.8
Published in DOT / TC Specification Acetylene Cylinders
Read more...
Monday, 13 August 2018 11:57

S-75

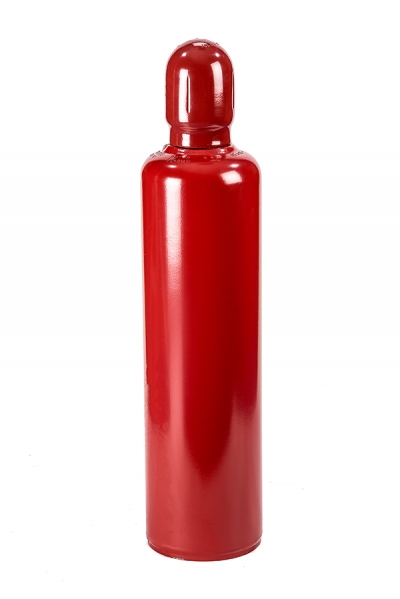

S-75 Acetylene Cylinder

Additional Info

  • Min. Cylinder Volume (in³ ) 855
  • Min. Cylinder Volume (liter) 14
  • Approx. Tare Wgt. w/Valve (w/o Cap) (lb) 43.8
  • Approx. Tare Wgt. w/Valve (w/o Cap) (kg) 19.8
  • OD (in) 7.2
  • OD (mm) 183
  • Height w/o Valve and Cap (in) 25.5
  • Height w/o Valve and Cap (mm) 647.7
  • Height w/Valve and Cap (in) 31.26
  • Height w/Valve and Cap (mm) 793.9
  • tmin (in) 0.1
  • tmin (mm) 2.5
  • Solvent Acetone (lb) 9.3
  • Solvent Acetone (kg) 4.2
  • Acetylene Capacity (ft³ ) 75
  • Acetylene Capacity (m³ ) 2.1
Published in DOT / TC Specification Acetylene Cylinders
Read more...
Monday, 13 August 2018 11:54

S-40BF

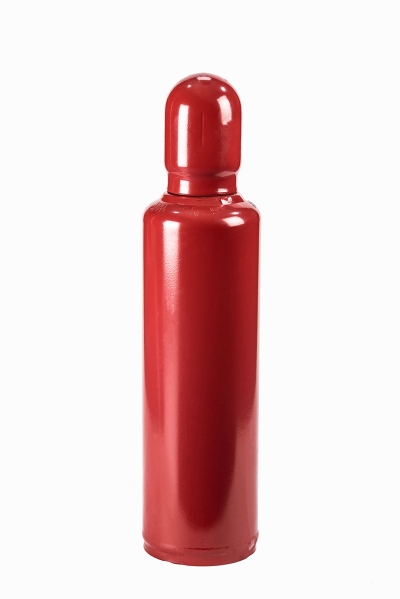

S-40BF Acetylene Cylinder

Additional Info

  • Min. Cylinder Volume (in³ ) 466
  • Min. Cylinder Volume (liter) 7.6
  • Approx. Tare Wgt. w/Valve (w/o Cap) (lb) 26.5
  • Approx. Tare Wgt. w/Valve (w/o Cap) (kg) 12
  • OD (in) 6.2
  • OD (mm) 157
  • Height w/o Valve and Cap (in) 20
  • Height w/o Valve and Cap (mm) 508
  • Height w/Valve and Cap (in) 25.912
  • Height w/Valve and Cap (mm) 658.2
  • tmin (in) 0.092
  • tmin (mm) 2.3
  • Solvent Acetone (lb) 5.1
  • Solvent Acetone (kg) 2.3
  • Acetylene Capacity (ft³ ) 40
  • Acetylene Capacity (m³ ) 1.1
Published in DOT / TC Specification Acetylene Cylinders
Read more...
Monday, 13 August 2018 11:53

S-40

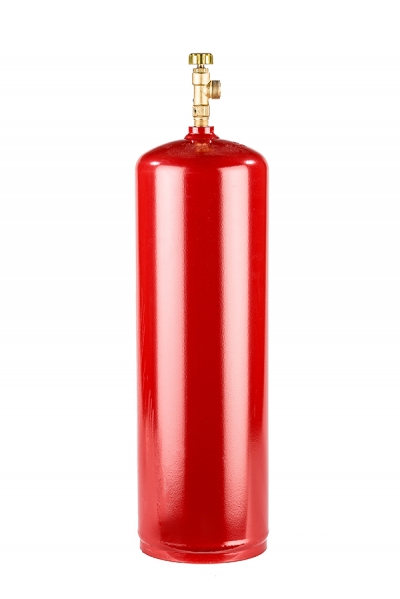

S-40 Acetylene Cylinder

Additional Info

  • Min. Cylinder Volume (in³ ) 466
  • Min. Cylinder Volume (liter) 7.6
  • Approx. Tare Wgt. w/Valve (w/o Cap) (lb) 23.7
  • Approx. Tare Wgt. w/Valve (w/o Cap) (kg) 10.8
  • OD (in) 6.2
  • OD (mm) 157
  • Height w/o Valve and Cap (in) 19.813
  • Height w/o Valve and Cap (mm) 503.25
  • Height w/Valve and Cap (in) 23.2
  • Height w/Valve and Cap (mm) 589.3
  • tmin (in) 0.092
  • tmin (mm) 2.3
  • Solvent Acetone (lb) 5.1
  • Solvent Acetone (kg) 2.3
  • Acetylene Capacity (ft³ ) 40
  • Acetylene Capacity (m³ ) 1.1
Published in DOT / TC Specification Acetylene Cylinders
Read more...
Monday, 18 June 2018 12:08

55CF

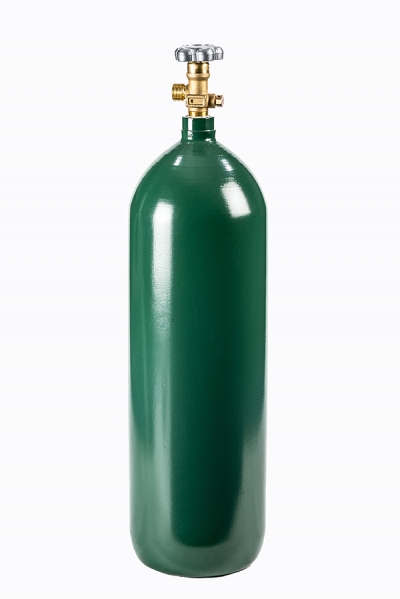

55CF High Pressure Cylinder

Additional Info

  • High Pressure Cylinders

  • Min. Cylinder Volume (in³ ) 650
  • Min. Cylinder Volume (liter) 10.6
  • Nom. Cylinder Weight (lb) 32
  • Nom. Cylinder Weight (kg) 14.5
  • OD (in) 7
  • OD (mm) 177.8
  • L (in) 22.875
  • L (mm) 581.02
  • tmin (in) 0.144
  • tmin (mm) 3.66

  • Approximate Capacity at 10% Overfill

  • 10% Overfill Pressure (psi) 2216
  • 10% Overfill Pressure (bar) 153
  • Air (ft³) 57.9
  • Air (m³) 1.64
  • Oxygen (ft³) 62.7
  • Oxygen (m³) 1.78
  • Nitrogen (ft³) 57.9
  • Nitrogen (m³) 1.64
  • Argon (ft³) 62.4
  • Argon (m³) 1.77
  • Helium (ft³) 55.2
  • Helium (m³) 1.56

  • Approximate Capacity at Rate Service Pressure

  • DOT Service Pressure (psi) 2015
  • DOT Service Pressure (bar) 139
  • Air (ft³) 53
  • Air (m³) 1.5
  • Oxygen (ft³) 57
  • Oxygen (m³) 1.61
  • Nitrogen (ft³) 52.7
  • Nitrogen (m³) 1.49
  • Argon (ft³) 56.8
  • Argon (m³) 1.61
  • Helium (ft³) 50.2
  • Helium (m³) 1.42
  • Hydrogen (ft³) 49.4
  • Hydrogen (m³) 1.39
Published in Standard DOT/TC Specification High Pressure Cylinders₁
Read more...
Thursday, 07 June 2018 10:27

40CF

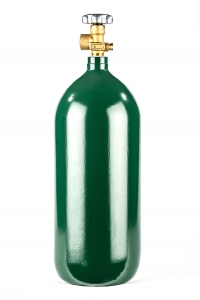

40CF High Pressure Cylinder

Additional Info

  • High Pressure Cylinders

  • Min. Cylinder Volume (in³ ) 500
  • Min. Cylinder Volume (liter) 8.2
  • Nom. Cylinder Weight (lb) 27
  • Nom. Cylinder Weight (kg) 12.2
  • OD (in) 7
  • OD (mm) 178
  • L (in) 18
  • L (mm) 457
  • tmin (in) 0.144
  • tmin (mm) 3.66

  • Approximate Capacity at 10% Overfill

  • 10% Overfill Pressure (psi) 2216
  • 10% Overfill Pressure (bar) 153
  • Air (ft³) 43.9
  • Air (m³) 1.24
  • Oxygen (ft³) 45.9
  • Oxygen (m³) 1.3
  • Nitrogen (ft³) 42.4
  • Nitrogen (m³) 1.2
  • Argon (ft³) 45.7
  • Argon (m³) 1.29
  • Helium (ft³) 40.4
  • Helium (m³) 1.14

  • Approximate Capacity at Rate Service Pressure

  • DOT Service Pressure (psi) 2015
  • DOT Service Pressure (bar) 138.9
  • Air (ft³) 40.1
  • Air (m³) 1.13
  • Oxygen (ft³) 41.7
  • Oxygen (m³) 1.18
  • Nitrogen (ft³) 38.5
  • Nitrogen (m³) 1.09
  • Argon (ft³) 41.5
  • Argon (m³) 1.18
  • Helium (ft³) 36.7
  • Helium (m³) 50.2
  • Hydrogen (ft³) 37.5
  • Hydrogen (m³) 49.4
Published in Standard DOT/TC Specification High Pressure Cylinders₁
Read more...
Wednesday, 06 June 2018 18:13

S-10

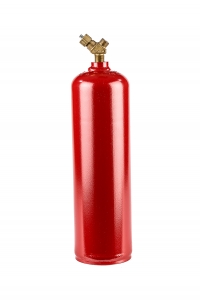

SM-10 Acetylene Cylinder

Additional Info

  • Min. Cylinder Volume (in³ ) 125
  • Min. Cylinder Volume (liter) 2
  • Approx. Tare Wgt. w/Valve (w/o Cap) (lb) 8.2
  • Approx. Tare Wgt. w/Valve (w/o Cap) (kg) 3.7
  • OD (in) 4
  • OD (mm) 102
  • Height w/o Valve and Cap (in) 13.375
  • Height w/o Valve and Cap (mm) 339.7
  • Height w/Valve and Cap (in) 15.4
  • Height w/Valve and Cap (mm) 391.2
  • tmin (in) 0.07
  • tmin (mm) 1.8
  • Solvent Acetone (lb) 1.3
  • Solvent Acetone (kg) 0.6
  • Acetylene Capacity (ft³ ) 10
  • Acetylene Capacity (m³ ) 0.28
Published in DOT / TC Specification Acetylene Cylinders
Read more...
Thursday, 07 June 2018 08:29

20CF

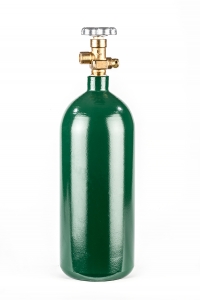

20CF High Pressure Cylinder

Additional Info

  • High Pressure Cylinders

  • Min. Cylinder Volume (in³ ) 220
  • Min. Cylinder Volume (liter) 3.6
  • Nom. Cylinder Weight (lb) 10.5
  • Nom. Cylinder Weight (kg) 4.8
  • OD (in) 5.263
  • OD (mm) 133.7
  • L (in) 13.75
  • L (mm) 349
  • tmin (in) 0.113
  • tmin (mm) 2.87
  • Cylinder Traceability Unique Number something

  • Approximate Capacity at 10% Overfill

  • 10% Overfill Pressure (psi) 2216
  • 10% Overfill Pressure (bar) 153
  • Air (ft³) 19.3
  • Air (m³) 0.54
  • Oxygen (ft³) 20.6
  • Oxygen (m³) 0.58
  • Nitrogen (ft³) 19
  • Nitrogen (m³) 0.54
  • Argon (ft³) 20.5
  • Argon (m³) 0.58
  • Helium (ft³) 18
  • Helium (m³) 0.5

  • Approximate Capacity at Rate Service Pressure

  • DOT Service Pressure (psi) 2015
  • DOT Service Pressure (bar) 138.9
  • Air (ft³) 17.7
  • Air (m³) 0.5
  • Oxygen (ft³) 18.7
  • Oxygen (m³) 0.53
  • Nitrogen (ft³) 17.3
  • Nitrogen (m³) 0.49
  • Argon (ft³) 18.6
  • Argon (m³) 0.53
  • Helium (ft³) 16.5
  • Helium (m³) 0.47
  • Hydrogen (ft³) 16.5
  • Hydrogen (m³) 0.46
Published in Standard DOT/TC Specification High Pressure Cylinders₁
Read more...
Page 3 of 3

PDF 32Download a printable DOT Cylinders spec sheet

Norris Cylinder Specifications

For specification information on a particular cylinder, please use our Cylinder Specification feature to find the information you need for our DOT High Pressure, Acetylene, and ISO High Pressure Norris Cylinders.
