Norris Cylinder manufactures acetylene cylinders with a world renowned asbestos-free, lime-silica porous mass. As the original patent holder of this asbestos-free mass, we have licensed our asbestos free mass to manufacturers in Spain, Australia, Germany, Czechoslovakia, France, Austria, England and the United States.

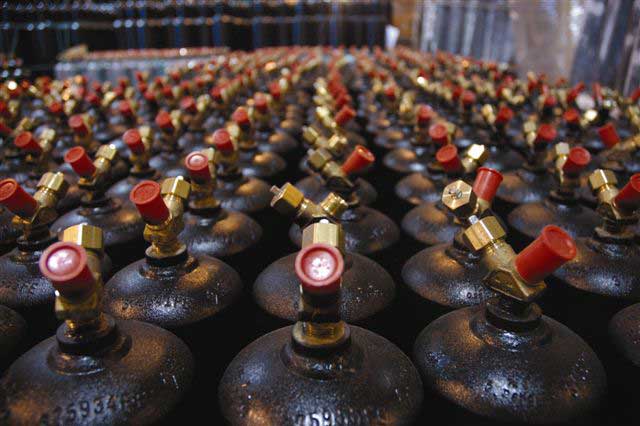

In design, construction and workmanship, Norris Cylinder acetylene cylinders exceed normal industry requirements. Acetylene cylinders are available in a wide variety of sizes, specifications, and configurations with either acetone or DMF as the solvent.

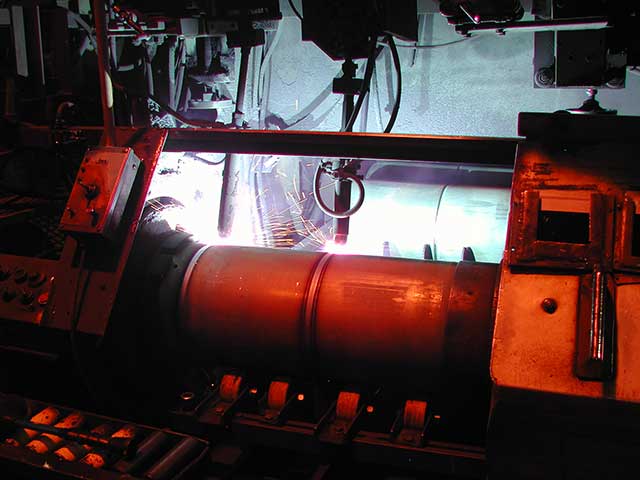

Forged from steel disks that are cold cupped, drawn and welded to form a cylinder shell, our cylinders are manufactured in accordance with DOT 8/TC 8WM, DOT 8AL/TC 8WAM, or ISO-3807 specifications from the U.S. Department of Transportation, Transport Canada, or the International Organization for Standardization. The cylinders are designed to a settled service pressure of 250 psig at 70°F for a withdrawal rate of 1/7 of cylinder capacity per hour.

For other available sizes or customization options, please contact your Norris Cylinder Sales Representative or Customer Service for more information.


Min. Cylinder Volume (in³ )

Acetylene Capacity (ft³ )

Min. Cylinder Volume (liter)

Acetylene Capacity (m³ )

Specifications

(at 70 F corresponding to minimum cylinder volume)

Product Min. Cylinder Volume (in3) Approx. Tare Wgt. w/Valve (w/o Cap) (lb) OD (in) Height w/o Valve and Cap (in) Height w/Valve and Cap (in) tmin (in) Solvent Acetone [DMF] (lb) Acetylene Capacity (ft3)

DOT / TC Specification Acetylene Cylinders

S-10 125 8.2 3.95 13.375 15.4 0.07 1.3 10
S-40 466 23.7 6.18 19.813 23.2 0.092 5.1 40
S-40BF 466 26.5 6.18 20 25.912 0.092 5.1 40
S-75 855 43.8 7.2 25.5 31.26 0.1 9.3 75
S-100 1055 55.6 7.26 30.75 36.6 0.129 12.4 100
S-145 1536 74.3 8.22 34.25 1012.2 2.8 25.9 210
WM-210 2194 101.9 10.27 32.6 38.2 0.13 25.9 210
WM-250 2606 119 10.27 38 43.6 0.13 30.8 250
W-310 3240 136.65 12.34 32.75 38.35 0.134 38.2 310
W-397 4151 169.8 12.34 41 46.6 0.134 49 397
W-420 4375 177.1 12.34 43.25 48.85 0.134 51.9 420
W-450 4680 184.9 12.34 45.25 50.85 0.134 55.6 450

Seamless ISO 3807 Cylinders

AC40L 2441 130 9 48 53 0.134 27.55 259
AC50L 3051 168 9 57 65 0.134 34.17 324
Product Min. Cylinder Volume (liter) Approx. Tare Wgt. w/Valve (w/o Cap) (kg) OD (mm) Height w/o Valve and Cap (mm) Height w/Valve and Cap (mm) tmin (mm) Solvent Acetone [DMF] (kg) Acetylene Capacity (m3)

DOT / TC Specification Acetylene Cylinders

S-10 2 3.7 3.95 339.7 391.2 1.8 0.6 0.28
S-40 7.6 10.8 6.18 503.25 589.3 2.3 2.3 1.1
S-40BF 7.6 12 6.18 508 658.2 2.3 2.3 1.1
S-75 14 19.8 7.2 647.7 793.9 2.5 4.2 2.1
S-100 17.3 25.2 7.26 781 929.6 3.3 5.6 2.8
S-145 25.2 33.7 8.22 869.95 38.2 0.13 11.7 5.9
WM-210 36 46.2 10.27 828 970.3 3.3 11.7 5.9
WM-250 42.7 54 10.27 965.2 1107.4 3.3 14 7.1
W-310 53.1 62 12.34 831.85 974.1 3.4 17.3 8.8
W-397 68 77 12.34 1041.4 1183.6 3.4 22.2 11.2
W-420 71.7 80.3 12.34 1098.55 1240.8 3.4 23.5 11.9
W-450 76.7 83.9 12.34 1149.35 1291.6 3.4 25.2 12.7

Seamless ISO 3807 Cylinders

AC40L 40 59 9 1219.2 1346 3.4 12.5 7.3
AC50L 50 76.2 9 1447.8 1574.8 3.4 15.5 9.18

Norris Cylinder Specifications

For specification information on a particular cylinder, please use our Cylinder Specification feature to find the information you need for our DOT High Pressure, Acetylene, and ISO High Pressure Norris Cylinders.
